For HVAC repair, the right foil tape is not selected by “heat resistance” alone. Reliable performance depends on matching the adhesive system, substrate, moisture exposure, mechanical stress, liner configuration and tape construction to the actual operating conditions. Single-sided aluminum foil tape is commonly used for duct joints, insulation-facing repairs and vapor-barrier restoration because it combines a metal barrier surface with pressure-sensitive adhesion. Reinforced constructions are preferred when vibration or tearing risk is higher, while lined and linerless versions serve different installation workflows.

HVAC repair is often treated as a simple sealing task, but field failures usually come from a mismatch between tape construction and service conditions. A tape may bond well during installation and still lift later because the substrate was contaminated, condensation was present, the adhesive was not suited to the temperature range, or the joint was exposed to movement the tape could not accommodate. For procurement teams and technicians, the practical question is therefore not “Is foil tape good for HVAC?” but “Which foil tape construction is appropriate for this specific HVAC surface and operating condition?”

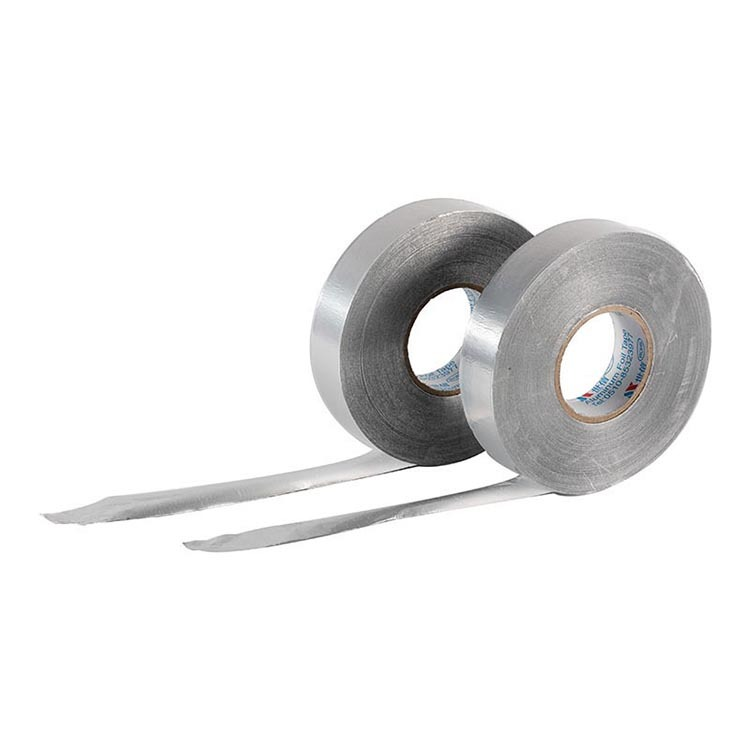

Linerless aluminum foil tape product photograph

Where Single-Sided Foil Tape Fits in HVAC Repair

Single-sided foil tape is designed to seal, cover or protect an exposed surface. The adhesive is applied on one side of the aluminum-based backing, while the outer foil surface remains exposed. In HVAC work, this makes the tape suitable for tasks such as:

• Sealing accessible joints and seams on metal ductwork.
• Closing seams in foil-faced insulation and vapor-barrier facings.
• Repairing small, non-structural damage after the underlying surface has been restored.
• Covering penetrations or cuts in insulation facings to restore continuity.
• Providing a reflective, moisture-resistant outer surface where foil-facing compatibility is required.

Foil tape should not be treated as a substitute for structural repair. A collapsed duct, separated mechanical joint, severely corroded section or damaged load-bearing component must be repaired first. The tape is the sealing layer, not the structural member.

Select by Operating Temperature, Not by a Generic “High-Temperature” Label

Temperature is one of the first screening criteria, but the verified service range belongs to a specific product construction and adhesive system. It should not be inferred from the aluminum backing alone. Shixin supplies aluminum foil tape with different adhesive systems, including water-based acrylic, solvent-based acrylic, rubber and specialty silicone formulations for different requirements.

The published parameter table lists a service-temperature range of -10°C to 90°C for SXATW-03W and -10°C to 120°C for SXATW-03R. These are grade-specific published values, not installation-temperature limits or evidence of long-term performance under every HVAC condition. Request the current technical data sheet and validate the selected grade on the actual assembly.

Substrate Type Can Matter as Much as Temperature

The same tape can behave differently on galvanized steel, stainless steel, aluminum, foil-faced insulation or a flexible jacket. Surface energy, contamination, texture and movement all affect adhesive wet-out and long-term holding.

Lined vs. Linerless Foil Tape: Different Workflows, Not “Permanent vs. Temporary”

A release liner changes handling, positioning and process speed. It does not automatically determine whether a tape is “professional” or “temporary.” Shixin manufactures both lined and linerless aluminum foil tapes for industrial use, including refrigeration and HVAC-related applications.

For OEM production, linerless tape can be a deliberate process choice rather than a compromise. Shixin’s current linerless aluminum foil tape data lists machine and manual use, widths including 25, 48, 50, 63, 75 and 100 mm, and long-roll options including 600 m, with custom sizes available.

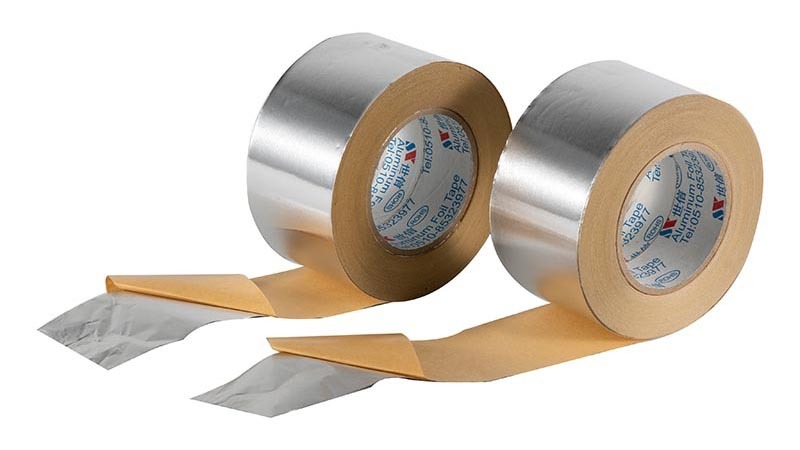

Aluminum foil tape with a release liner

Reinforced vs. Non-Reinforced Foil Tape

Plain aluminum foil tape is highly conformable and works well for many static seams. Reinforced structures add mechanical support when the joint is more exposed to tearing, handling stress, vibration or movement.

The key is to compare like with like. Tensile and tear values should be evaluated within the same backing construction. A generic number for “reinforced foil tape” should not be presented as the specification of every reinforced product.

Tape Width and Thickness: Match the Joint, Do Not Guess from One Number

Width determines how much bonded area is available on each side of a seam. Thickness affects handling, conformability and mechanical durability, but “thicker” is not always “better.” A thicker construction may resist puncture more effectively while becoming less conformable around corners and irregular geometry.

• Choose enough width to provide stable overlap on clean substrate at both sides of the seam.
• For narrow or curved areas, excessive width can make wrinkle-free application more difficult.
• Clarify whether a quoted thickness refers to the aluminum backing, adhesive coat or total tape construction.
• The published parameter table lists aluminum backing thickness from 11 μm to 100 μm, with customization available. This is foil thickness, not total tape thickness. Confirm adhesive thickness and any liner or reinforcement separately.

Surface Preparation and Application Practices That Prevent Edge Lifting

• Clean the bonding area. Remove dust, oil, water and loose fibers before application.
• Apply at a suitable installation temperature. Even a tape with a broad service-temperature range may require warmer conditions for initial adhesive wet-out.
• Use firm pressure. Pressure-sensitive adhesive needs intimate contact with the substrate; use a roller where practical.
• Apply from the center outward to reduce trapped air and wrinkles.
• Do not stretch the tape during installation. Stored tension can create peel stress at the edges.
• Allow for movement. On joints exposed to thermal cycling or vibration, choose a construction with suitable mechanical durability.
• Inspect the first installation after the system has completed one or more operating cycles.

A Practical HVAC Foil Tape Selection Matrix

Compliance: Confirm the Document Required for the Actual Project

Request the current compliance documents for the exact tape grade and destination market. Management-system certificates describe the manufacturer’s systems; RoHS or REACH documentation concerns defined substance requirements, and an SGS report applies to its stated sample and test scope.

If a project specifically requires UL 181 or another third-party listing, confirm that requirement before ordering and request the exact applicable documentation for the proposed tape. Do not assume that a company-level certificate or a different product’s test report automatically applies to every HVAC tape.

HVAC Foil Tape Selection Checklist

• Confirm the normal and maximum surface temperature.
• Identify the exact substrate and surface finish.
• Assess moisture, condensation, outdoor exposure and cleaning conditions.
• Determine whether the seam is static or exposed to vibration and thermal movement.
• Choose lined or linerless construction according to the installation or production workflow.
• Select a width that provides sufficient overlap without creating handling problems.
• Confirm the exact tape construction and verified specification for the selected grade.
• Check project-specific compliance documentation.
• Test a sample on the actual substrate before full production or large-scale installation.

What to Look for in an HVAC Foil Tape Manufacturer

Shixin began in Wuxi, Jiangsu, in 2005 with the establishment of Wuxi Shixin Adhesive Tape Products Co., Ltd., focusing on adhesive tape development, manufacturing and sales. As the business expanded, the company invested in a new factory in Suqian, Jiangsu, in 2018 and established Jiangsu Shixin Adhesive Tape Product Co., Ltd. (Shixin Tape), expanding its industrial tape manufacturing capabilities.

Today, Shixin operates on a site of approximately 12,000 square meters and manufactures aluminum foil tapes, heat-seal aluminum tapes, film tapes and foam tapes for refrigeration, air conditioning, insulation and other industrial applications. For HVAC and refrigeration projects, Shixin helps buyers select tape constructions and custom specifications based on the substrate, operating temperatures and installation or production process, with sample testing to evaluate performance in the intended application.

For HVAC and refrigeration applications, a more reliable sourcing process is to start with the real substrate, temperature range, installation method and required documentation, then test a sample under representative conditions. This reduces the risk of selecting a tape based on a generic “high-temperature” claim that does not match the actual application.

FAQ

Is linerless aluminum foil tape only for temporary HVAC repair?

No. Linerless tape is widely used in industrial and OEM workflows because it removes the release-liner step and can support faster manual or machine application. Suitability depends on the actual product grade and application conditions, not simply on whether a liner is present.

Should I choose reinforced foil tape for every HVAC joint?

No. Reinforcement is valuable when tear resistance, vibration or mechanical stress is important. Plain foil tape is often more conformable for static seams and irregular shapes.

Can I use one temperature rating for all Shixin aluminum foil tapes?

No. Temperature capability depends on adhesive chemistry and construction. Use the verified data for the exact grade and do not transfer a specialty silicone or automotive temperature claim to a standard HVAC tape.

What should I test before ordering in bulk?

Test adhesion on the real substrate, application handling, edge lift after thermal cycling, moisture exposure where relevant, and compatibility with the installation or production process.

Does Shixin provide samples and customized sizes?

Yes. Shixin supports sample testing and can customize width, length, adhesive system and packaging according to the application and order requirements.
